Free Flap 1.7

Free Flap 1.7


  • Model name: Free Flap 1.7 Hinge
  • Code number: DI-70054-K5S4H
Categories: ,

Description




Product Summary:

  • Applied to small-sized wooden doors or aluminum frame doors

Detailed Description:

  • Material: Body (steel), cover cap (plastic)
  • Finish/color: Body (nickel plating), cover cap (RAL7035 gray, RAL9003 white)
  • Door height: 250-400mm
  • Opening angle: 107˚ (angle When using the limit clip, the opening angle can be adjusted to 90˚)

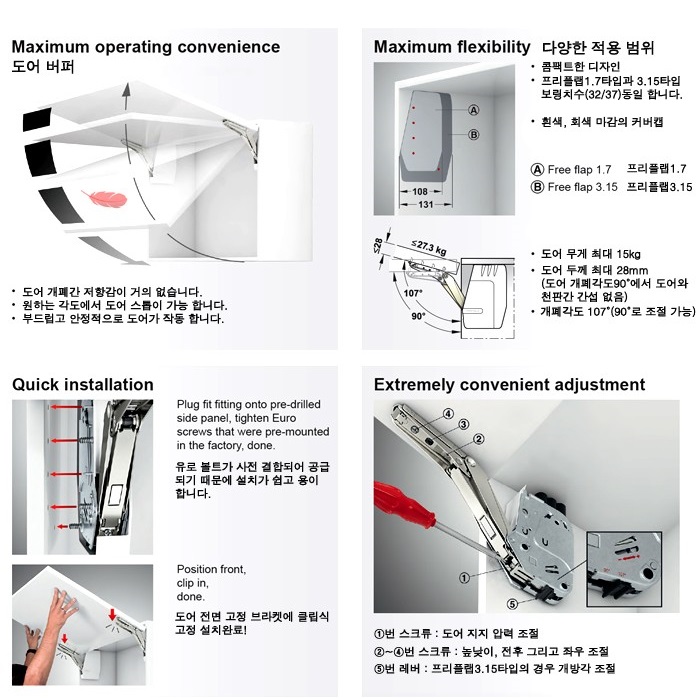

  • Adjustment: +/-1.5mm adjustable in both the height, front and rear, and left and right door support pressure adjustable

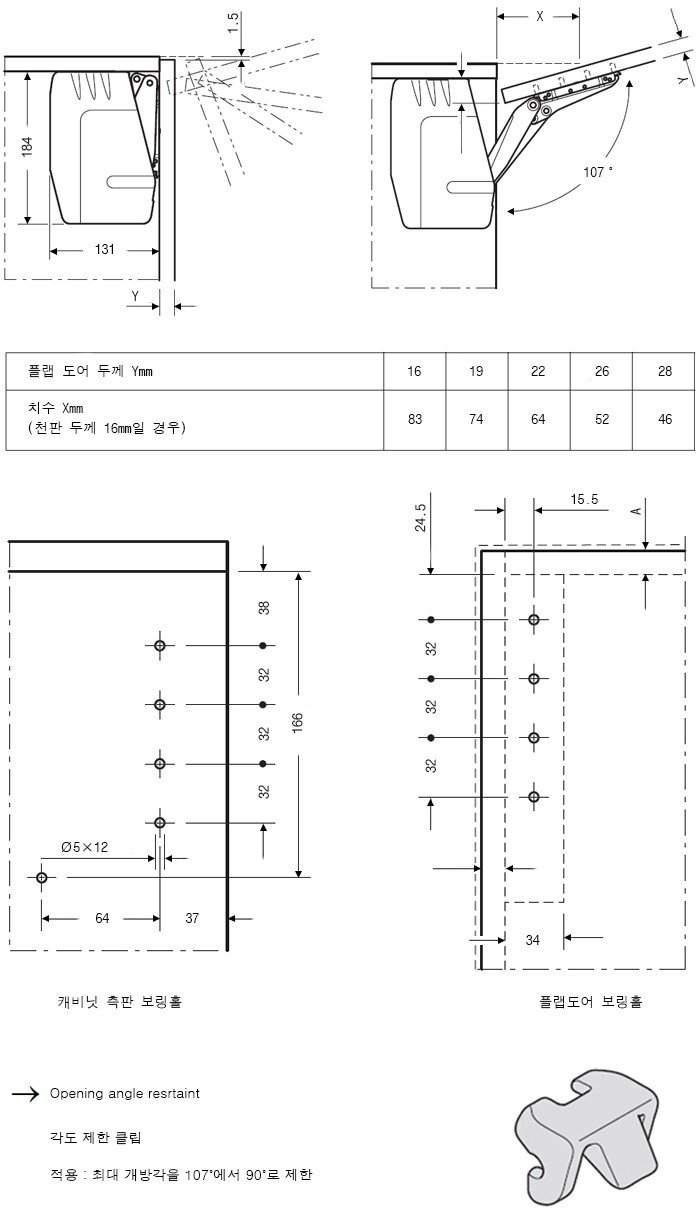

  • Installation: body (pre-boring hole fixed), door (clip-type bracket fixed)
