Description

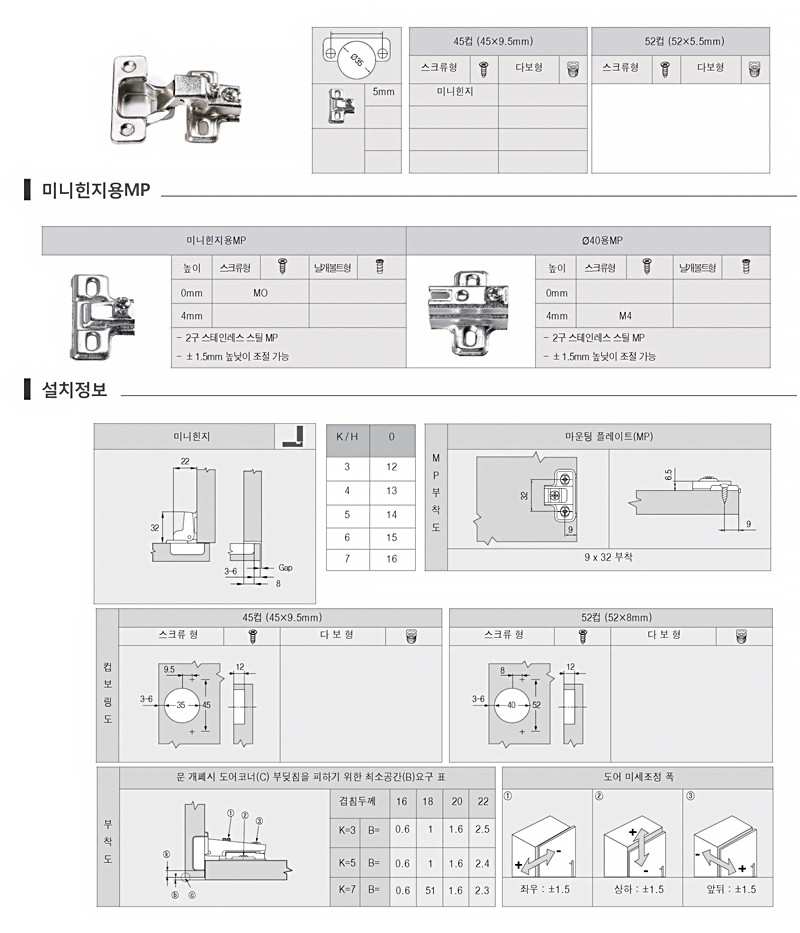

Detailed Description:
- Opening angle: 110˚
- Cup outer diameter: 35mm
- Cup depth: 11.5mm
- Hole distance: 45mm
- Cup material: Stainless steel
- Boring position: 3~6mm from the side
- Door thickness: Up to 20T

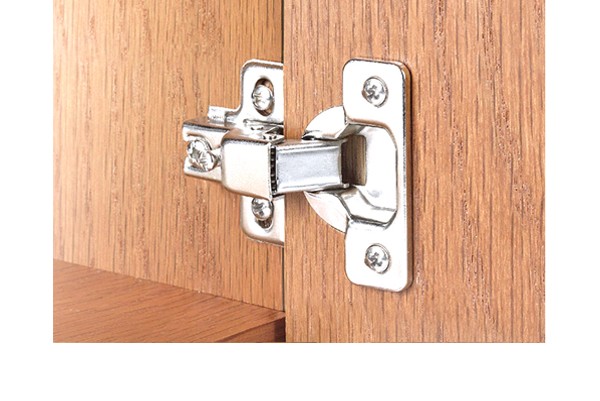

Mini Hinge 90˚ & 110˚(Cover)
Mini Hinge 90˚ & 110˚(Cover)
- Model name: Mini Hinge 90˚ & 110˚(Cover)
- Code number: DI-60061-K170
