Description
Detailed Description

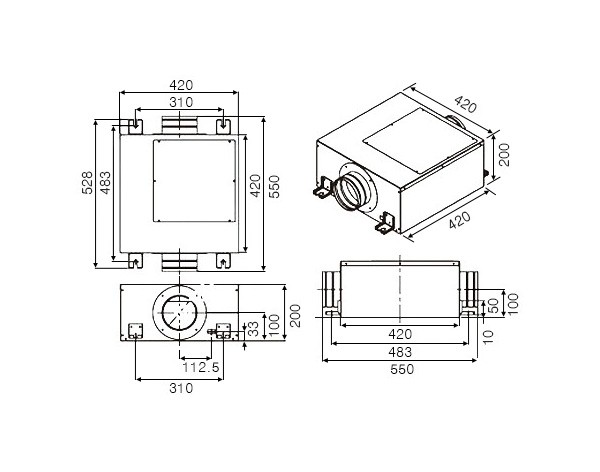

– Specification: 420(W)ｘ420(D)ｘ200(H)
– When damper and mounting bracket are installed: 526(W)ｘ550(D)ｘ200(H)
– Fan: ø225 steel fan
– Motor core: BLDC MOTOR(Ø88, 35 T)
– Maximum static pressure: 67.8mmAq
– Maximum air volume: 528 CMH
– Maximum power consumption: 150.8W
– Port size: ø50/ø125
– Rated voltage: AC220V / 60Hz
– Features: Existing range hoods have exhaust fans installed in the kitchen Since it is built into the range hood, there is a problem that the noise is severe when the exhaust fan is operated to discharge odors, steam, and smoke generated by cooking to the outside . Accordingly, it is an exhaust structure system that installs the exhaust fan of the range hood in a non-residential space where no people live, so that the effect of noise generated during operation of the exhaust fan does not significantly affect the residential space.
-Special edition only
