  • Model name: Pantry Cabinet Door (600 type)
  • Code Number: DI-70061-K27S720 Hanssem Left basket, DI-70061-1-K27S720 Hanssem Right basket, DI-70061-2-K3S3H Hanssem Door pocket 1-tier, DI-70061-3-K28S380 Hanssem DoorACC 600 4-tier, DI-70061-4-K24S530 Hanssem DoorACC 450 4-tier, DI-70061-5-K18S480 Myungjin Right basket, DI-70061-6-K18S480 Myungjin Left basket, DI-70061-7-K18S480 combined
Categories: ,

Description

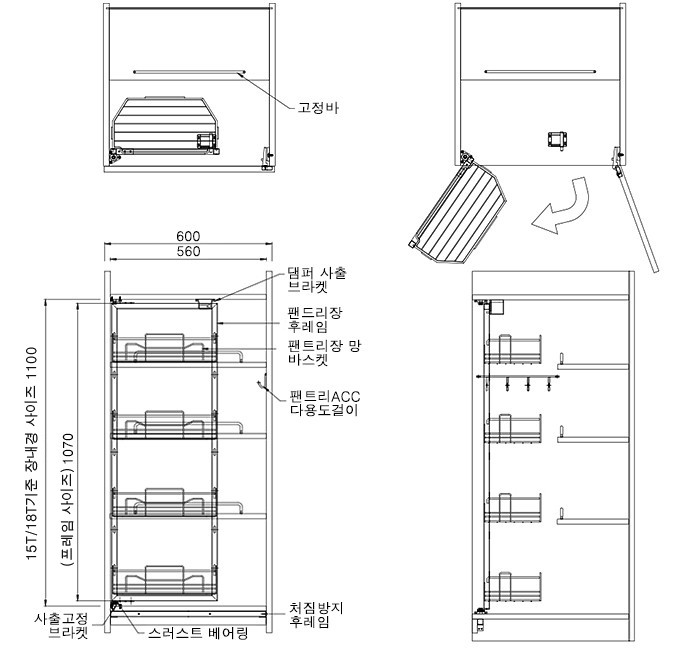

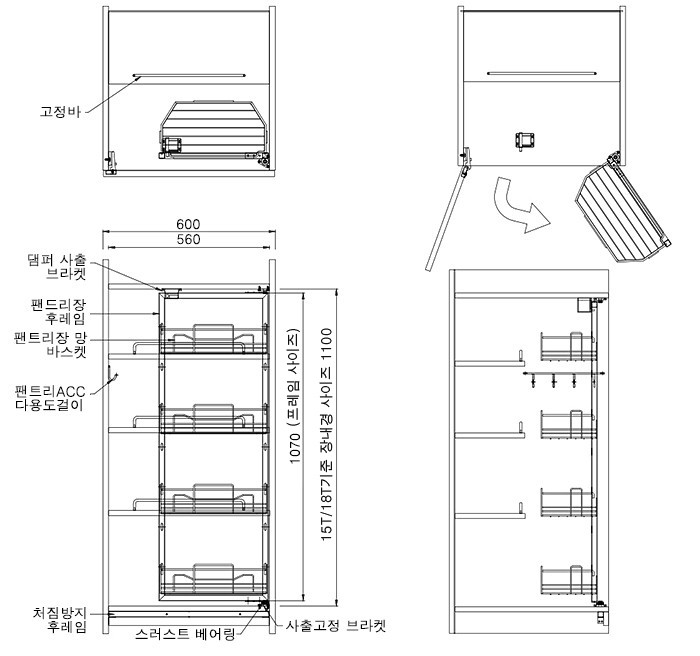

[Right view drawing]

[Left view drawing]

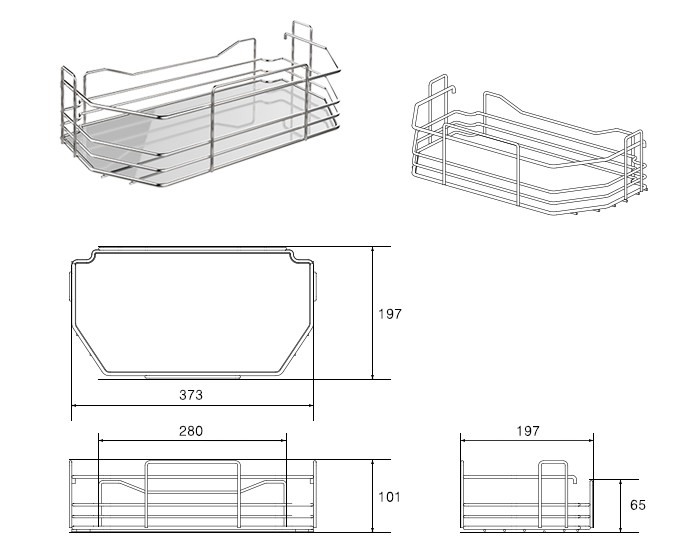

[AL basket]

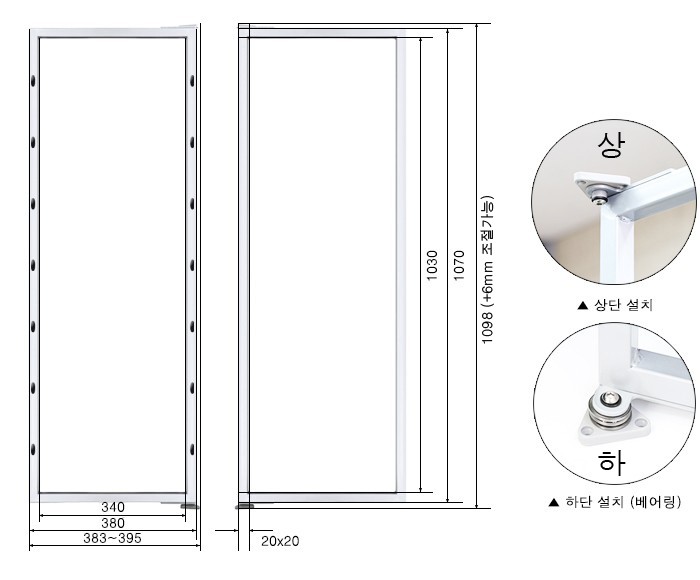

[Pantry ACC_Frame]

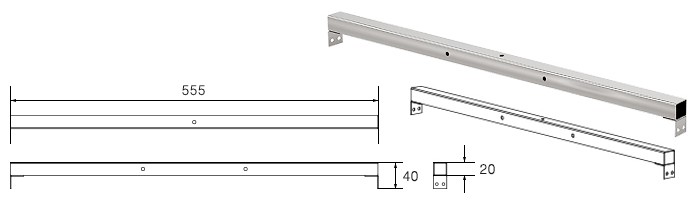

[Sagging prevention frame]

[Storage support]

[Frame smooth]

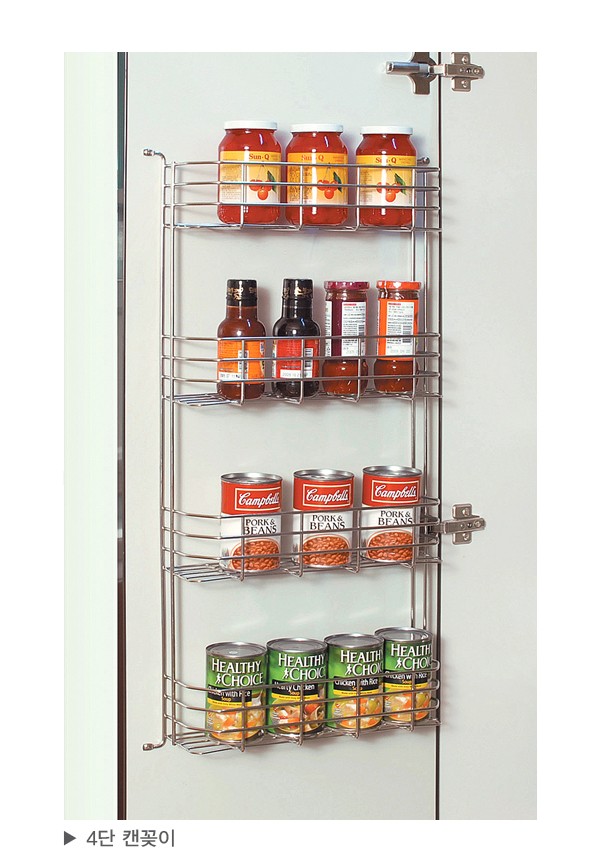

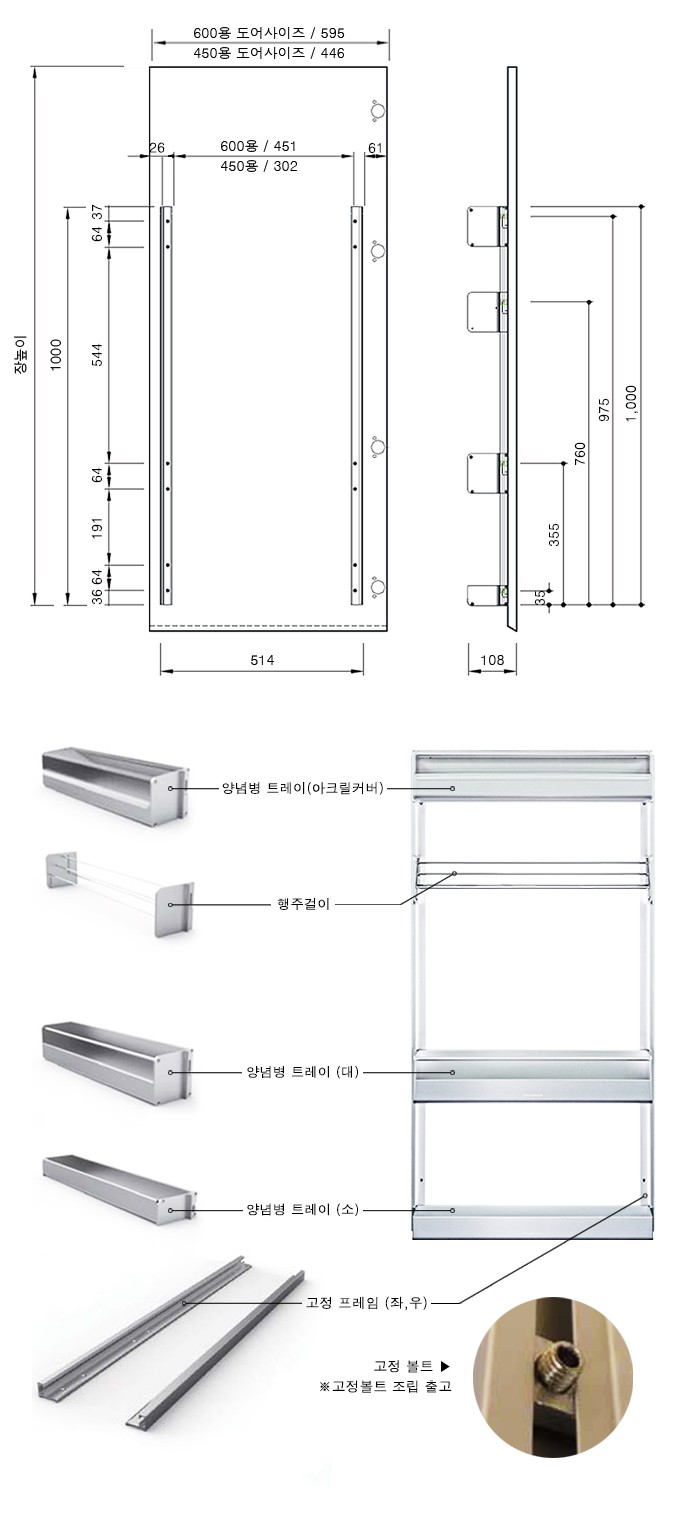

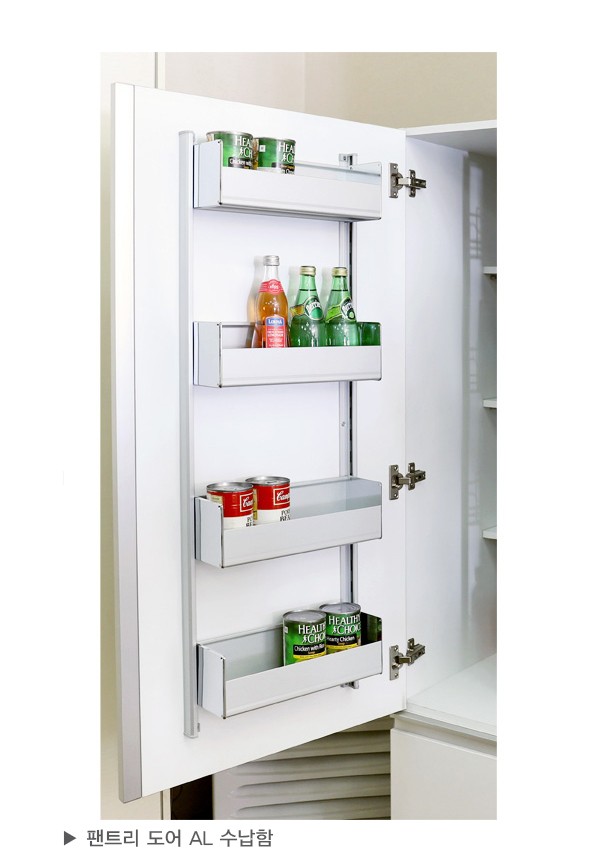

[For pantry door ACC 450/600]

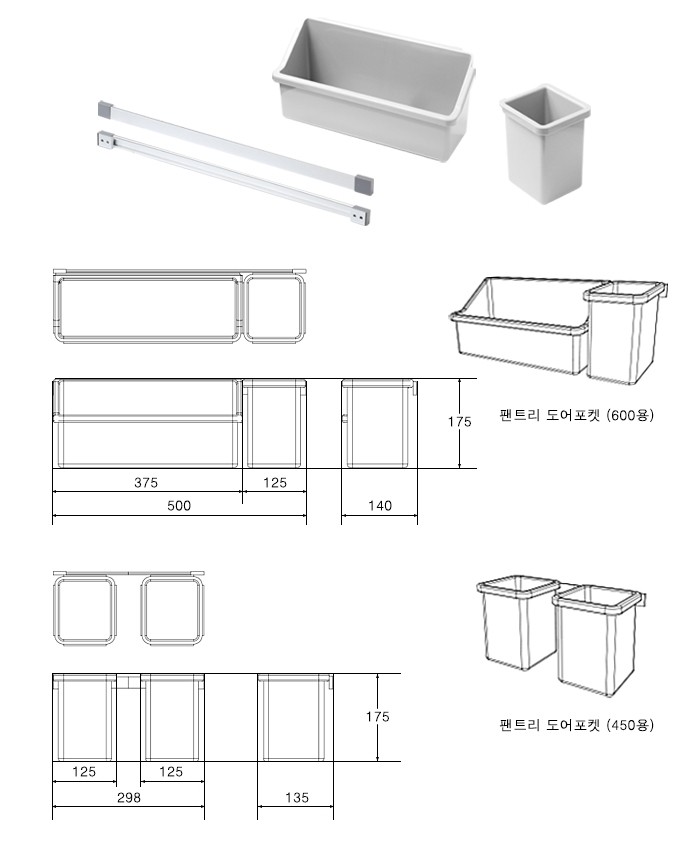

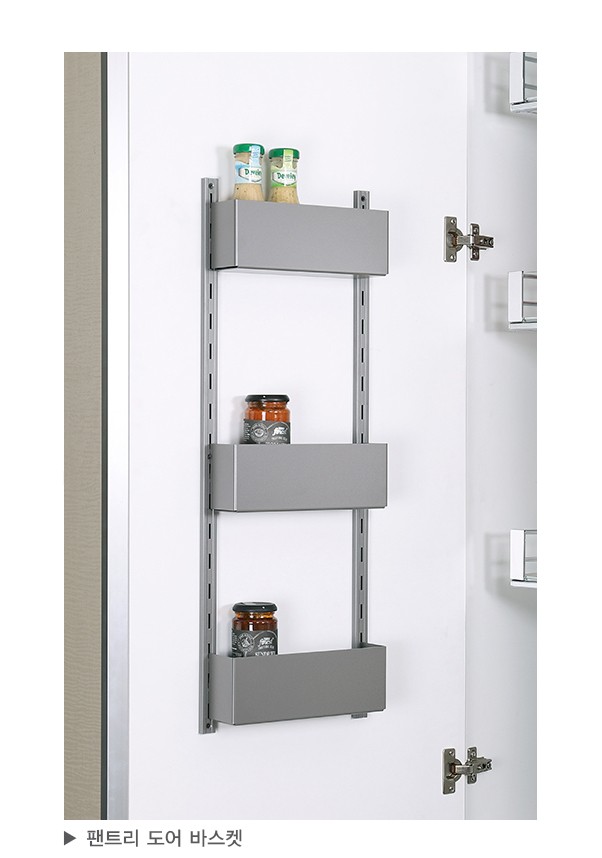

[Pantry cabinet door pocket for 600/450]

Product Summary

  • ※ 180° hinge is prohibited -> 135° hinge can be used

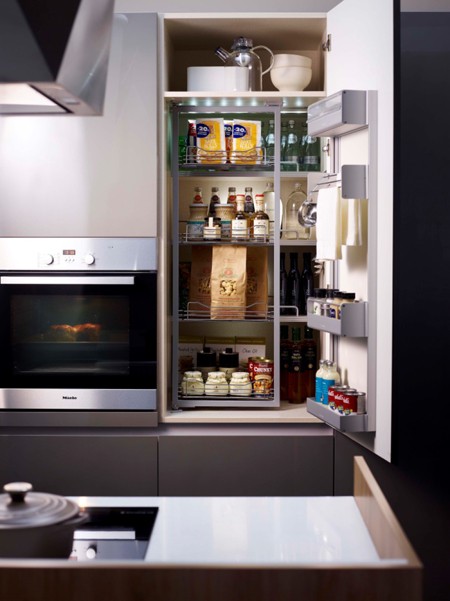

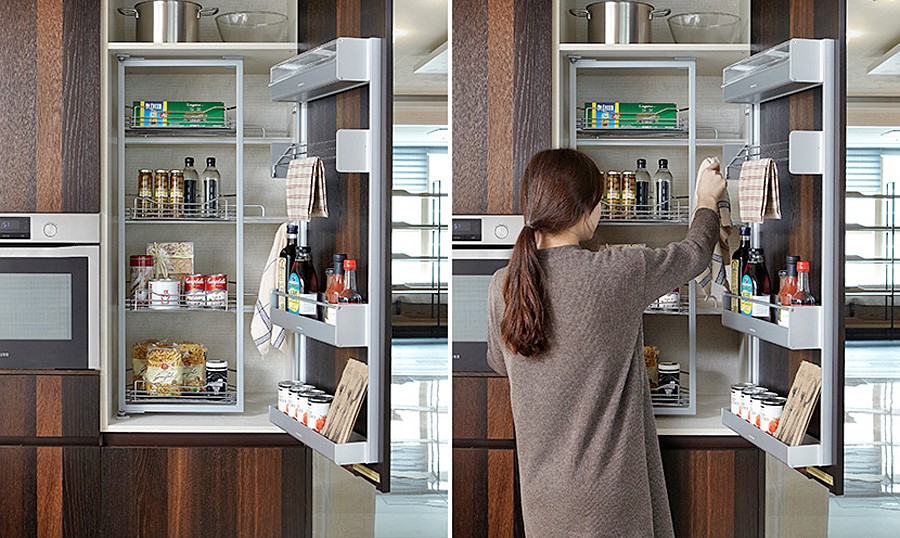

  • A pantry room that can be used as a pantry including snacks
  • Compact pantry cabinet for 40 pyeong
  • 110 degree hinge applied
  • Easy design
  • BLUM 110 degree hinge used (same hinge position as normal T2)
  • Classic doors are not allowed (ACC cannot be installed at the rear of the door)

Detailed Description

-Long size: Outer diameter size 600(W)x570(D)x1130(H)
Inner diameter size 570(W)x550(D)x1100(H)

-Shelf size: 570(W)x240(D)x15T standard (shelf 3EA)



It is a refrigerator-type pantry room that fits the lifestyle of Koreans using a variety of ingredients.
