Description
Detailed Description:
- Model Name: SHL-SP-1
- Frequency: 2400MHz ~ 2483.5MHz
- Transmit Power: Max 10dBm
- Receive Sensitivity: -98Bm
- Protocol: ZigBee
- Antenna: Built-in Type
- Power Supply: AC85~ 240V, DC Output: 5V-300mA
- Rating Load: Max. AC220V 16A
- LED: Status
- RF Coverage (Line of sight): Over 30 meters
- IR Coverage: Over 7 meters
- Number of Pairing: Auto (Multi)
- Active Current(IR TX): Max. 250mA
- Stand by Current: 30mA
- Operating Temperature: 0℃ ~ 60℃

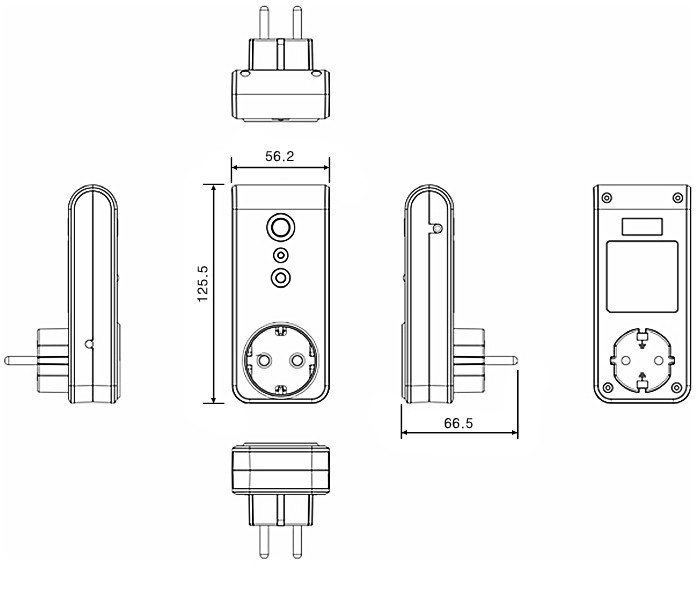

- Dimensions: 56 x 125 x 48mm(H)
- Weight: 130g
- Key Features: Outlet On/Off Control, Device Stand By/Active Monitoring, IR Device Control, IR Learning, IR Emitter Support
- Certifications: KC (Korea Certification), Others TBD
- Package: Main unit, IR emitter cable
- Warranty: 1-year limited
